This is a tool to identify the resistance value of resistor.When the color on the resistor is selected, the resistance value of the resistor is displayed directly on the page.The tolerance, maximum and minimum values are also displayed. If 6 bands are selected, the temperature coefficient of resistance will be displayed.
It's a very simple tool, Choose 3 band, 4 band, 5 band, or 6 band first, then select the corresponding color in several option boxes, and the resistance value will be displayed in the result bar immediately.
Key:
1: 1st band 1st numeral Green = 5
2: 2nd band 2nd numeral Red = 2
3: 3rd band Multiplier Orange = x 103
4: 4th band Tolerance Yellow = ±0.02%
Result: Resistance 52KΩ, Tolerance ±0.02%
| Color | Code | 1st, 2nd Significant numeral |
Multiplier | Tolerance |
| Black | BK | 0 | x100 | |
| Brown | BN | 1 | x101 | ±1% |
| Red | RD | 2 | x102 | ±2% |
| Orange | OG | 3 | x103 | ±0.05% |
| Yellow | YE | 4 | x104 | ±0.02% |
| Green | GN | 5 | x105 | ±0.5% |
| Blue | BU | 6 | x106 | ±0.25% |
| Violet | VT | 7 | x107 | ±0.1% |
| Grey | GY | 8 | x108 | ±0.01% |
| White | WH | 9 | x109 | |
| Gold | GD | x10-1 | ±5% | |
| Silver | SR | x10-2 | ±10% | |
| Pink | PK | x10-3 |

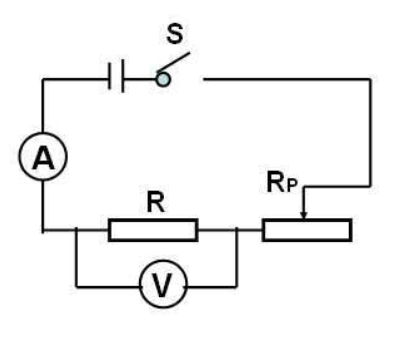

Resistor is the most basic electronic component in the circuit.Resistor is a common component of electrical network and electronic circuit, which is ubiquitous in electronic equipment.

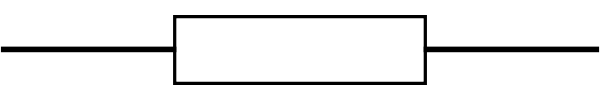

1) symbol 1:

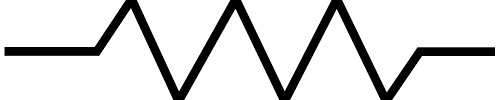

2) symbol 2:

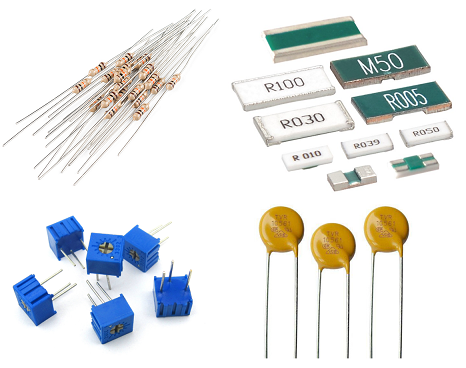

Carbon film resistor, Metal film resistor, Wirewound potentiometer, Carbon film potentiometer, Wirewound resistor, Carbon resistor
